Formlabs
€ 185,91
€ 224,95 Incl. BTW

Dit materiaal is geoptimaliseerd voor statisch applicaties die aan hoge temperaturen moeten weerstaan. High Temp kan ook gebruikt worden voor productieprocessen zoals casting en thermoforming.

Backorder

Levertijd:
+-2 weken
EAN Code:
811294030501

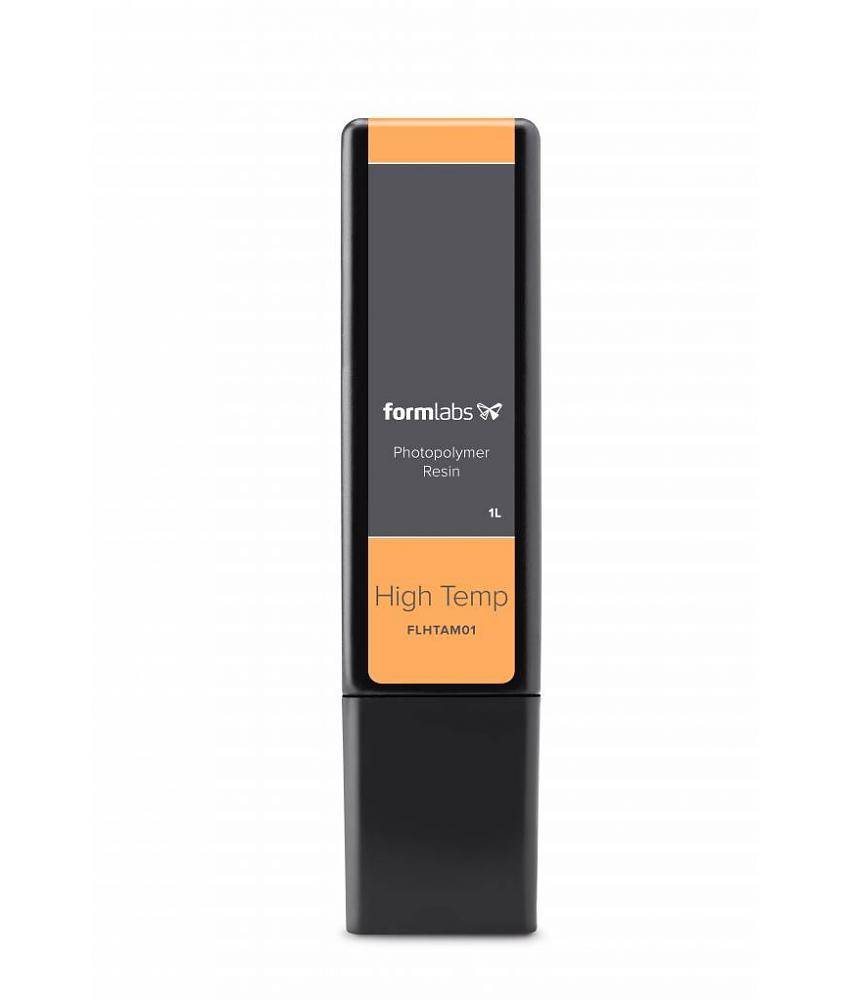

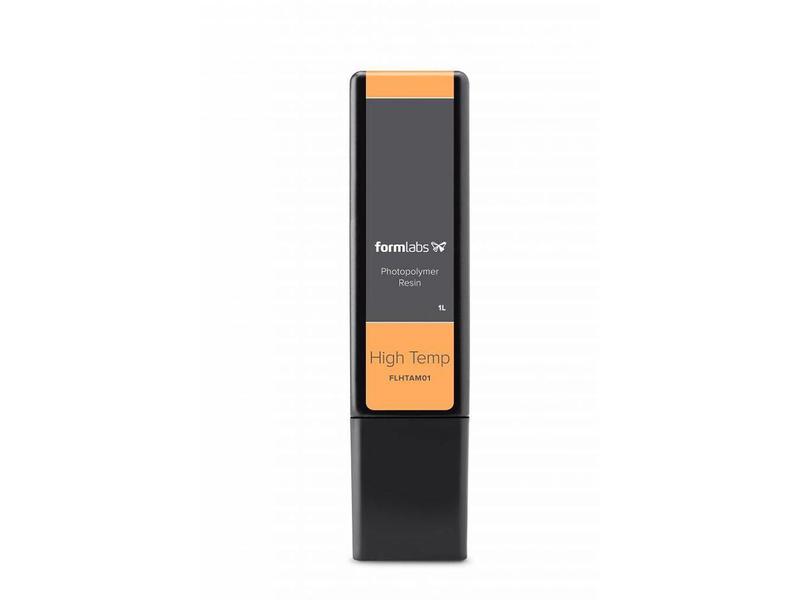

High Temp Resin

High Temp biedt een warmteafbuigingstemperatuur tot een temperatuur van 238°C @ 0.45 MPa, de hoogste weerstand onder de Formlabs resin's. Dit materiaal is geoptimaliseerd voor statisch applicaties die aan hoge temperaturen moeten weerstaan. High Temp kan ook gebruikt worden voor productieprocessen zoals casting en thermoforming.

Wordt gebruikt voor:

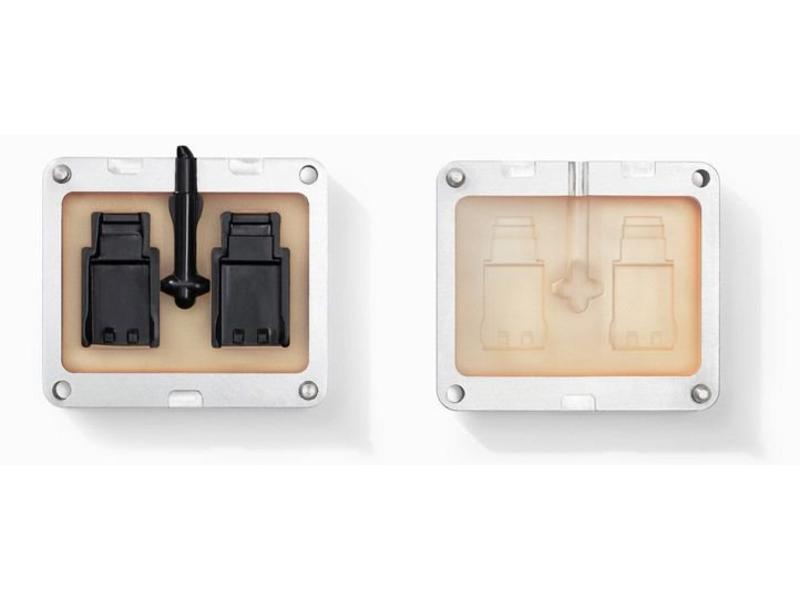

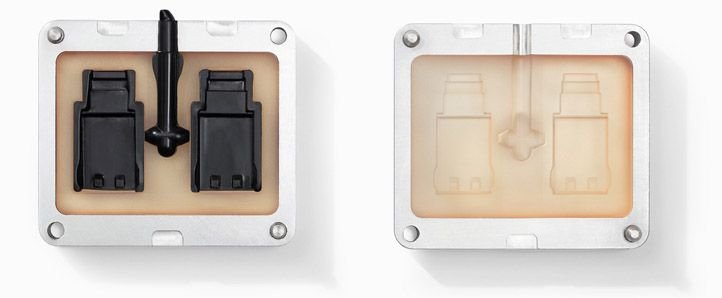

  • Mold prototyping
  • Hitte bestandige onderdelen
  • Hete lucht en vloeistofstroom
  • Omgevingstesten

Alleen te gebruiken met de Resin Tank LT.

Technische fiche & veiligheidsvoorschriften

Kleur: Naturel
Materiaal: High temp v2 resin
Compatible printer: Form 2 & Form 3
Print resolutie: Form 2: 100 & 50 & 25 microns & Form 3: 100 & 50 (vanaf 19 aug. 2019) & 25 (vanaf 19 aug. 2019) microns
Resin tank: Resin Tank LT
Gewicht: 1L
Ultieme treksterkte : 20.9 MPa & posted-cured: 58.3 MPa & posted-cured en thermisch posted-cured: 51.1 MPa
Trekmodulus: 0.75 GPa & posted-cured: 2.75 GPa & posted-cured en thermisch posted-cured: 2.9 GPa
Verlening bij breken: 14,% & posted-cured: 3.3% & posted-cured en thermisch posted-cured: 2.4%
Buigmodulus: 0.69 GPa & posted-cured: 2.75 GPa & posted-cured en thermisch posted-cured: 2.62 GPa
Inkeping IZOD: 32.8 J/m & posted-cured: 18.2 J/m & posted-cured en thermisch posted-cured: 24.2 J/m
Warmteafleiding temp. : @ 1.8 MPa: 43.6°C & posted-cured: 99.2°C & posted-cured en thermisch posted-cured: 101°C
Warmteafleiding temp.: @ 0.45 MPa: 49.3°C & posted-cured: 142°C & posted-cured en thermisch posted-cured: 238°C
Afwerking: Matte oppervlakteafwerking
Posted-cured nodig: Ja
Extra: High temp V1 & V2 mogen NIET worden gemixt!
